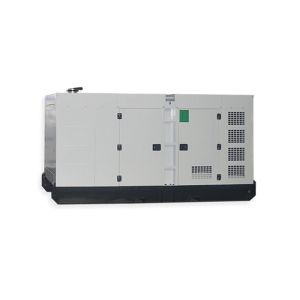

Italian FPT Diesel Generator Prime 200kw 250kva Soundproof Type
White Color
| Technical specification |
|
| Genset Model | GP275FPS |
| Prime Power | 200KW/250KVA |
| Standby Power | 220KW/275KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50 HZ |
| Rated Current | 360.8A |
| Genset Structure | SILENT |
| Dimension | 3800×1380×1980mm |
| Net Weight | 3800KG |
| Noise level | 80 dba @ 7 meters |
| Engine Model | FPT FPT/CURSOR87TE3 |
| Engine Features | 6-cylinder,4 stroke,, turboafter cooler |
| Bore * Stroke | 117mm × 135mm |
| Displacement | 8.7L |
| 12-hour Power(kw) | 229KW/1500 |
| Fuel Consumption L/H | 58L/H |
| Compression Ratio | 15.9:1 |
| Governor type | Common Rail |
| Alternator Model | MECC ALTE/ECO38-1LN/4 |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | |
| Smartgen 6120 | intelligent and network techniques is used for automatic control
system of diesel generator. It can carry out functions including
automatic start/stop, data measure and alarming.automatic switching
control functions (AMF), especially suitable for the automation
system composed by Mains and Generator |
Description:
1. Power Range: 250KVA
2. Engine: FPT FPT, Italain brand
3. Alternator: Genuine Stamford, Marathon, Meccalte, etc
4. Controller: Deepsea or Smartgen with or without AMF. Options:
remote controller, synchronizing,
5. ATS is optional
6. Type: Open type, Soundproof type, Trailer type, Container type,
etc
7. Color: Can be customized
Applications:
1. Industrial area: real estate, hospital, hotel,
bank,construction, factory, oil field, airport, mining, railway
2. Home use: personal use for house, camping, party, etc
3. Telecom, Mobile tower, etc
4. Island, Desert or any place without electricity
5. As for emergency equipment special for natural disasters, such
as typhoon, earthquake, heavy snow,
6. Standby power or main power, indoor or outdoor using.
Competitive Advantage:
1. Full power range.
2. All genuine engines and alternators.
3. The components we use are in high quality.
4. Fast delivery. Big quantity of Engines in stock.
5. The generator set is mounted on a heavy duty fabricated steel
skid type base– frame with anti vibration mounting pads.
6. Use high standard of sponge to make soundproof.
7. The canopy design is user friendly, and easy for maintenance.
8. Pre and after sales service is provided.
9. Fast response for the inquires, service, etc.
Company Details:
Wuxi Gpro Power Solution Co., Ltd is focusing on power generator products and service in China.Being
in the power generation field for more than 10 years, we have very
good connection with G-Drive Engines and brand alternators. We are
not only assembling the generator set, but alsogiving you the best
solution to meet your special needs on projects and your clients.
Our advantages:
1.Inspection
1) Each engine shall be tested at manufacturer’s workshop to
certify the engine output according to present standard and fuel
consumption in accordance with the site operating condition
specified by purchaser on the specification datasheet.
2) All relevant information drawings pertinent to the testing and
test procedure shall be transmitted to the purchaser in advance of
the test date notification.
3) All accompanied documents are corresponding to the actual
situation of generators, including the Qualified Certificate,
Parameters and the Performance Index.
2.Guarantee:
1) Guarantee Period: One year or 1000 running hours, depends on
whichever comes first.
2) During the guarantee period, the spare-parts will be sent
through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
If you are interested, please contact with us at any time!
