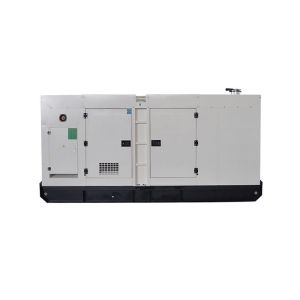

    Excellent Silent Electricial Start FPT Genset Water Cool 400kva Rainroof

    Ask Lasest Price
    Brand Name : GPRO
    Model Number : GP440FPS
    Certification : CE/ISO9001
    Price : USD 16500~18500$
    Supply Ability : 100 sets per months
    Delivery Time : 15~60 days
    • Product Details
    • Company Profile

    Excellent Silent Electricial Start FPT Genset Water Cool 400kva Rainroof

    Excellent Silent Electricial Start FPT Genset Water Cool 400kva Rainroof


    1. SPECIFICATIONS OF GEN-SET
    1.1Set ModelGP440FPS
    1.2Prime at 50HZ, 40℃ ambient320kW 400KVA
    1.3Standby at 50HZ, 40℃ ambient352kW 440KVA
    1.4Rated Gen-set output220/380V 50Hz
    1.5Rated Relative humidity≤ 60 %
    1.6Dimension (L×W×H)4800x1400x2230mm
    1.7Weight5000kg
    1.8Fuel consumption 100% prime load85.8L/h
    1.9Noise Level at 7m75dB
    1.10Structure of Gen-setThe Gen-set adopt integrative structure, engine is fix on high strength steel basic frame, anti vibration instrument between the engine and basic frame, cooling fan have protecting cap, control cabinet and circuit breaker installed on Gen-set.
    1.11Control system (Optional)Basic control panel or Advanced control panel with automatically start-up function and other function.
    2. SPECIFICATIONS OF ENGINE
    2.1Engine BrandFPT
    2.2Engine ModelC13
    2.3Governor/ClassECU
    Electronic engine control unitBOSCH EDC7 UC31
    2.4Cylinder NO.6
    2.5Engine buildLine
    2.6Fuel spray patternPT direct injection
    2.7start-up method24V, electric
    2.8Valves per cylinder4
    2.9Cooling systemliquid (water + 50% Paraflu11)
    2.10Bore and stroke135 x 150 mm
    2.11Induction Systemturbo aftercooler air/air
    2.12Displacement12.88L
    2.13Engine Prime Power at 1500rpm352KWm
    2.14Engine Standby Power at 1500rpm387KWm
    2.15Battery capacity100A/hr
    2.16Cold starting: without air preheating-10 ℃
    2.17Lube oil consumption<0.1% of fuel consumption
    2.18Coolant capacity - radiator and engine (50℃)68L
    2.19Fuel type#0 Diesel (Natural temperature)
    2.20Filter systemAdopt whole changeable lubricating oil, fuel filter and air filter
    2.21Exhaust systemAdopt industrial high efficiency muffler and ripple pipe
    3. SPECIFICATIONS OF ALTENATOR
    3.1Alternator BrandUP-4FLP
    3.2Alternator TypeA.C. Synchronous
    3.3Rated Voltage220/380V
    3.4Rated Frequency50HZ
    3.5Rated speed1500 RPM
    3.6Voltage regulation modeAuto
    3.7Alternator voltage regulation±0.5%
    3.8Exciting modeBrushless self exciting
    3.9Power factor0.8 (lagging)
    3.10Phase & wires3 phase 12 wires
    3.11Rated currency607.8A
    3.12Efficiency0.93
    3.13Insulation classH
    3.14Protection classIP23
    3.15Single load step to NFPA110100%
    3.16Max. Ambient Temperature40℃
    3.17Min. Ambient Temperature- 20℃
    3.18Max. altitude1000m
    3.19Weight1160kg

    Excellent Silent Electricial Start FPT Genset Water Cool 400kva Rainroof

    There are many international brand generator controller for our cusomer 's choice,such as Smartgen, Deep sea, Compny, Harson and so on.


    ATS: Upon detection of a mains(utility) failure the module automatically starts the generator set, once the mails (utility) power has been restored it instructs the generator set to stop.

    Standard Supply Scope:


    Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame
    Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables
    Documents included: manual book, product qualified card


    Optional supply scope:


    1.ATS

    2. SynchronizationSystem

    3. External daily fuel tank

    4. Silent Canopy

    5. Trailer

    6. Auto Fuel Pump

    7. Fuel and Water Separator

    8. Lub Oil Heater

    9. Coolant Heater

    10. Fuel Drain Pump


    Advantages:


    . We are a powerful and unity sales team:

    . we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.

    90% of our sales team members are with more than 5 years of experience in the generator field.

    . We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.

    . We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.

    . With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.


    If have any questions, please contact us. Your inquiry would be appreciated.
