    Used 400kw 500kva 3 Phase Power Generator , Cummins Silent Genset 12 Months Warranty

    Ask Lasest Price
    Brand Name : GPRO
    Model Number : GP550CCS
    Certification : CE/SONCAP/SASO
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 300 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Used 400kw 500kva 3 Phase Power Generator , Cummins Silent Genset 12 Months Warranty

    Used 400kw 500kva 3 Phase Power Generator , Cummins Silent Genset 12 Months Warranty


    1. SPECIFICATIONS OF GEN-SET
    Set ModelGP550CCS
    Prime at 50HZ, 40℃ ambient400KW 500KVA
    Standby at 50HZ, 40℃ ambient440KW 550KVA
    Rated Gen-set output230/400V 50Hz
    Rated Relative humidity≤ 60 %
    Dimension (L×W×H)3900×1400×2150mm
    Weight3900kg
    Fuel consumption 100% prime load64.7L/h
    Total heat radiated to ambient70KW
    Noise Level at 7m (Normal/Super)80dB
    Structure of Gen-set

    The Gen-set adopt integrative structure,

    engine is fix on high strength steel basic frame,

    anti vibration instrument between the engine

    and basic frame, cooling fan have protecting cap,

    control cabinet and circuit breaker installed

    on Gen-set.

    Control system (Optional)

    Basic control panel or Advanced control

    panel with automatically start-up function

    and other function.

    2. SPECIFICATIONS OF ENGINE
    Engine BrandCUMMINS
    Engine ModelKTA19G4
    Governor/ClassElectrical
    Cylinder NO.6
    Engine buildLine
    Fuel spray patternPT direct injection
    start-up method24V, electric
    AspirationTurbocharged/Aftercooled
    Cooling modeRadiator cooled (enclose water)
    Bore and stroke159×159 mm
    Compression ratio14.5:1
    Displacement19L
    Engine Prime Power at 1500rpm448KWm
    Engine Standby Power at 1500rpm504KWm
    Battery capacity127A/hr
    Starting/Min temperature7℃
    Lubrication oil capacity38.6L
    Coolant capacity - radiator and engine (40℃)70L
    Exhaust temp - full load prime512℃
    Exhaust gas flow - full load prime3723m3/h
    Exhaust gas back pressure max76mmHg
    Air flow - radiator (40℃ ambient)7.2 m 3/s
    Pusher fan head (duct allowance) 40℃13mmH 2O
    Air intake - engine- full load prime1428m3/h
    Standard Air intake temp25℃
    Fuel type#0 Diesel (Natural temperature)
    Filter system

    Adopt whole changeable lubricating

    oil, fuel filter and air filter

    Exhaust system

    Adopt industrial high efficiency muffler

    and ripple pipe

    3. SPECIFICATIONS OF ALTENATOR
    Alternator ModelHCI544D
    Alternator TypeA.C. Synchronous
    Rated Voltage230/400V
    Rated Frequency50HZ
    Rated speed1500 RPM
    Voltage regulation modeAuto
    Alternator voltage regulation±0.5%
    Exciting modeBrushless self exciting
    Power factor0.8 (lagging)
    Phase & wires3 phase 12 wires
    Rated currency505.2A
    Efficiency0.935
    Insulation classH
    Protection classIP23
    Single load step to NFPA110100%
    StandardsIEC34-1
    Max. Ambient Temperature40℃
    Min. Ambient Temperature- 20℃
    Max. altitude1000m
    Weight995.5kg

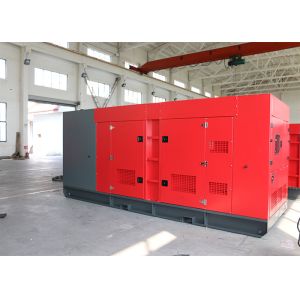

    SILENT POWER GENERATOR SET 500KVA 400KW PHOTOS:



    Company Information

    JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.


    Being in the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators. We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients. We supply Generator Sets from 2kva to 3000kva.
